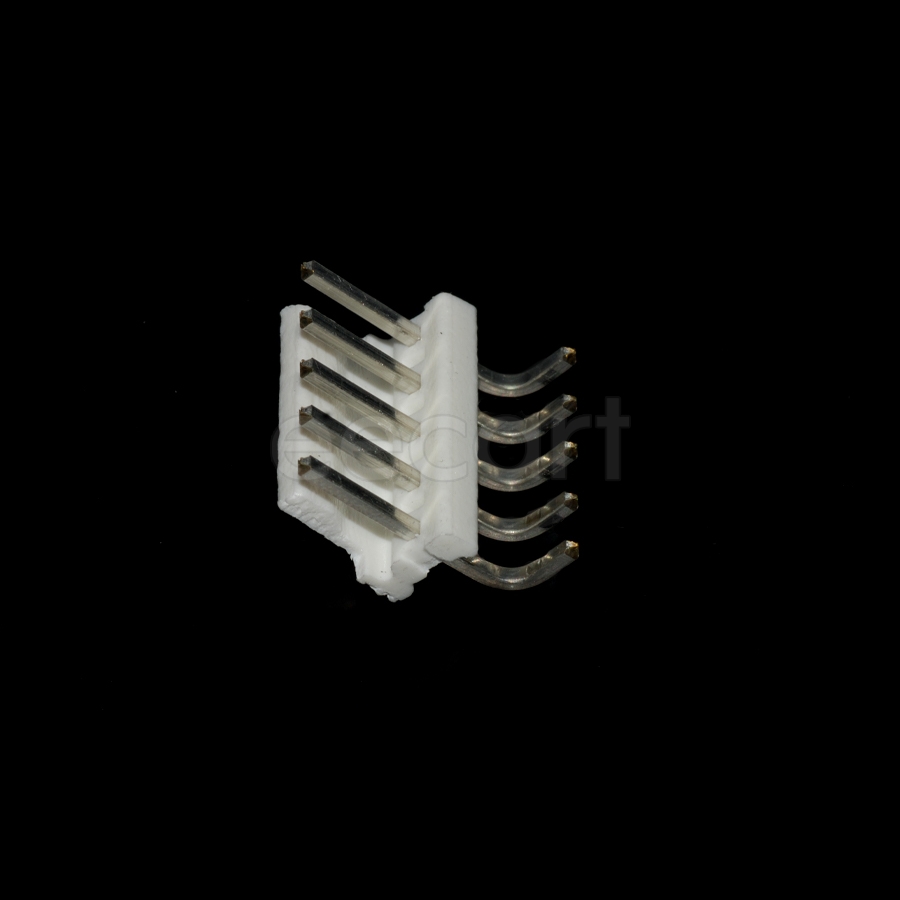

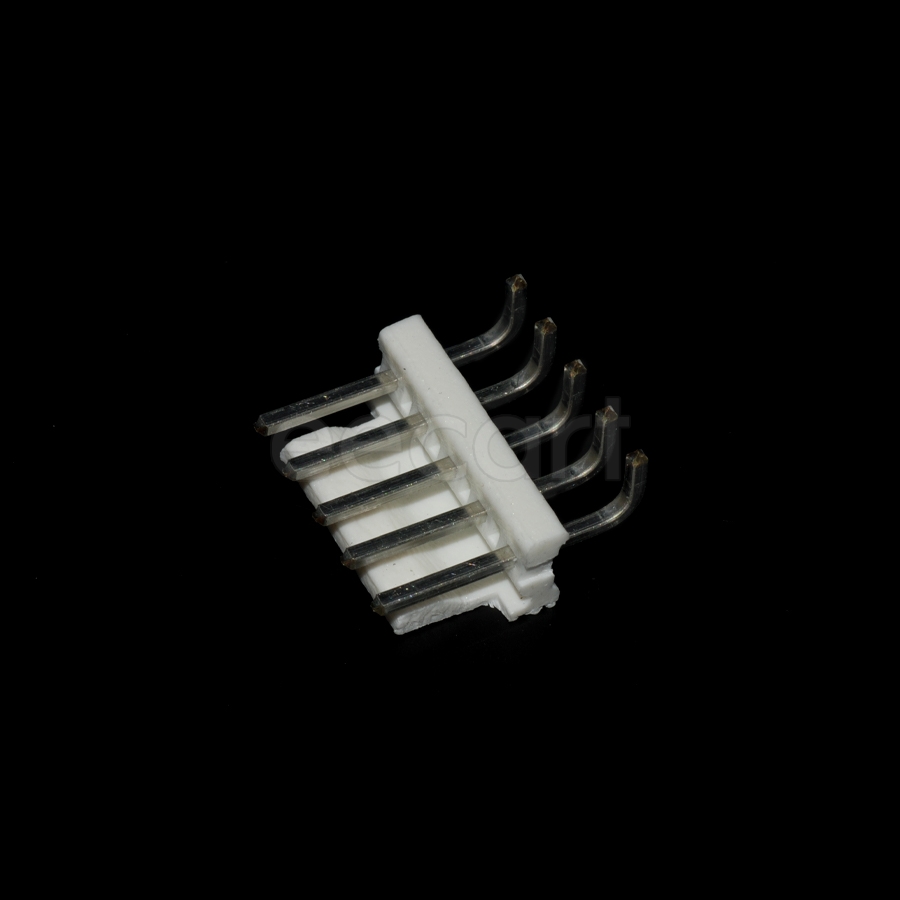

640389-5
Manufacturer:
TE Connectivity
Mfr.Part #:
640389-5
Datasheet:
Description:
Power Connectors Through Hole Current Rating:7 A Voltage Rating:600 V Tab Male
| Parameter | Value |
|---|---|
| Length | 19.81 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Height | 10.79 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 18.72 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3.96 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 3.18 mm |
| Contact Material(Contact Finish) | Copper |
| Pitch | 3.9624 mm |
| Current Rating | 7 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Right Angle |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 5 |
| ELV | Compliant |
| Number of Poles | 5 |
| Connector Type | Tab |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Fastening Type | Friction |
| Connector System | Wire-to-Board |
| Contact Resistance | 3 mΩ |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 7 A |
| Housing Color | Natural, White |
| Plating | Tin |
| shrouded | No |
| Contact Mating Length | 10.16 mm |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.6002 mm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Male |
| Number of Power Positions | 5 |
| Mating Post Length | 10.16 mm |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 207
Distributors
pcbx
pcbxUnit Price$0.39994
Ext.Price$0.39994
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.39994 | $0.39994 |
| 10 | $0.32026 | $3.20260 |
| 25 | $0.29272 | $7.31800 |
| 50 | $0.26755 | $13.37750 |
| 100 | $0.24454 | $24.45400 |
| 300 | $0.23464 | $70.39200 |
| 500 | $0.22514 | $112.57000 |
| 1000 | $0.20428 | $204.28000 |
